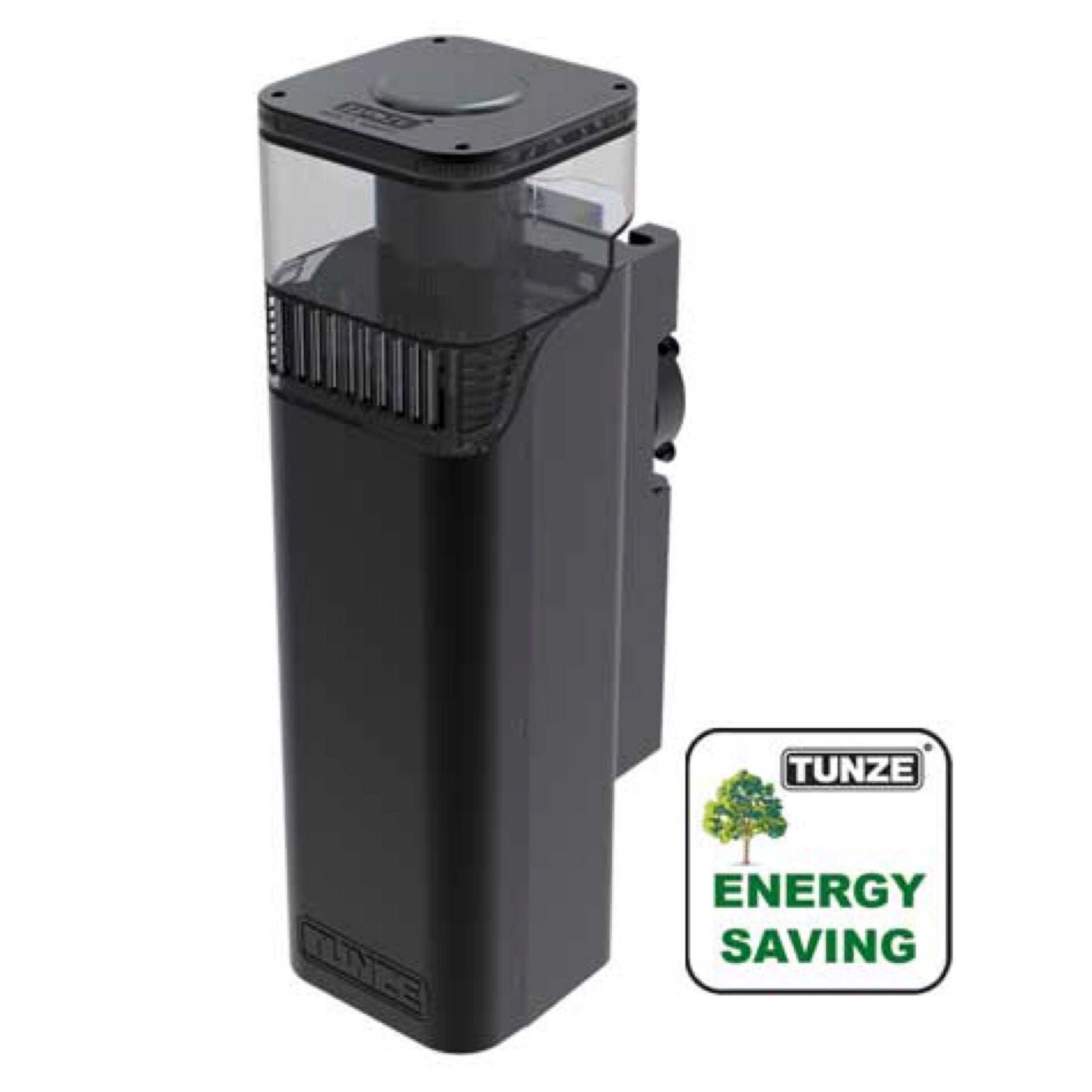

Tunze Comline DOC Skimmer 9004

The Comline® DOC Skimmer 9004 is designed for use in seawater mixed aquariums / soft coral aquariums up to 250 litres (66 USgal.) or sensitive reef biotopes with stone corals up to 150 litres (40 USgal.). It works based on the TUNZE® Flash Skimming principle, water supply is provided via an efficient surface intake system with bacteria film removal. Thus, the system can also be used as a stand alone solution in the aquarium. The featured TUNZE® Foamer generates many fine air bubbles with a diameter between 0.1 and 0.3mm, which ensures particularly silent operation.

The Comline® DOC Skimmer is ready for installation, including Magnet Holder up to a pane thickness of 12mm (3/8").

The Flash skimming principle enables highly efficient foam production.

Principle: Protein-rich surface water is mixed with water thoroughly in the TUNZE® Foamer. On the surface of the air bubbles forming, pollutants such as protein, cellulose, dead cells, etc. are adsorbed immediately, the air bubbles are very fine, with a diameter between 0.1 and 0.3mm. The water/air mixture is expanded and stabilized in the skimmer cup, the water returns to the aquarium, and the protein-loaded air bubbles reach the skimmer cup reactor. The patented anti-overfoaming system intermediate chamber with phase water prevents the skimmer from overfoaming and controls the skimmer performance, depending on the water level and organic load.

The particularly high efficiency of the flash skimming principle compared to large skimmers with long contact time is obtained because the substances adsorbed by the air bubbles are not released again, thus they don't return to the aquarium water again.

The Comline® DOC Skimmer 9004 is designed for use in seawater as well as mixed and soft coral aquariums up to 250 liters (65 USgal.) or for sensitive reef biotopes with hard corals up to 150 liters (40 USgal.).

(1) The skimmer cup also contains the foam reactor and can be removed easily.

(2) Surface suction to remove the surface film.

(3) Compact housing protects the interior and the reactor against light and algae.

(4) TUNZE® Foamer 9004.040 high air flow and low energy consumption.

(5) Air control to set the moisture of the foam.

(6) Silencer for an exceptionally quiet operation.

(7) Bubble-free discharged water.

(8) Including Magnet Holder up to a glass thickness of 12 mm (1/2”).

Recommended, depending on tank load, from 60 to 300 liters (15 to 79 USgal.) of sea water.

Immersion depth: approx. 225 to 245 mm (8.9 to 9.7 in.)

Skimmer cup volume: 0.2 liters (.05 in.)

Air capacity: approx. 200 l/h (52.8 USgal./h),

Energy consumption: approx. 5 W (max. 10 W)

Power supply unit: 100-240V / 50-60Hz

Cable length: 3 m (118.1 in.) up to the Turbelle® controller

Dimensions (L x W x H): 110 x 90 x 305 mm (4.3 x 3.5 x 12 in.)

Magnet Holder up to a glass thickness of 12 mm (1/2").
