Aqua Illumination Axis Centrifugal Pumps

Axis pumps offer full control, wireless smart device programming, DC motor quiet operation, and output calibration. Features that have traditionally been reserved for considerably larger and more expensive pumps. These features allow for:

Coordinate Feed/Maintenance Modes: Turn all your AI pumps on or off with the control button on a single pump.

Prevent back-siphon: With calibration set, instead of powering off, a pump will continue to run without producing flow, preventing siphoning, which could result in air-bubbles when the pump resumes its scheduled operation

Simple Built-In Control

All AI devices include smart control standard. Choose from the myAI or Mobius app on any iOS or Android device to easily set up or program your AI equipment. The Orbit pumps can also be controlled via Apex Fusion by utilizing the MXM module.

Included Pump Modes

Schedule: Create a custom program with changing flow over time.

Feed: Temporarily reduces flow to prevent food from being cycled into the overflow.

Calibrate: Calibrate your pump to your aquarium. Set max, min, and neutral flow levels.

Axis® 20

Dimensions

Width 2.125 in. (54 mm)Height 5.5 in. (139.7 mm)

Specifications

Max Head‰ˆ5 ft. (‰ˆ1.5 m)Flow Rate‰ˆ185 gph (‰ˆ700 lph)

Recommended Tank Size Up to ‰ˆ15 gallons

Power Consumption Variable, 12W max

Input 100“240VAC, 50-60Hz, 1A

What™s in the BoxAI Axis„¢ 20 Pump with Integrated DriverPower Adapter with Universal Plug

Adapter Set, Quick Start Guide

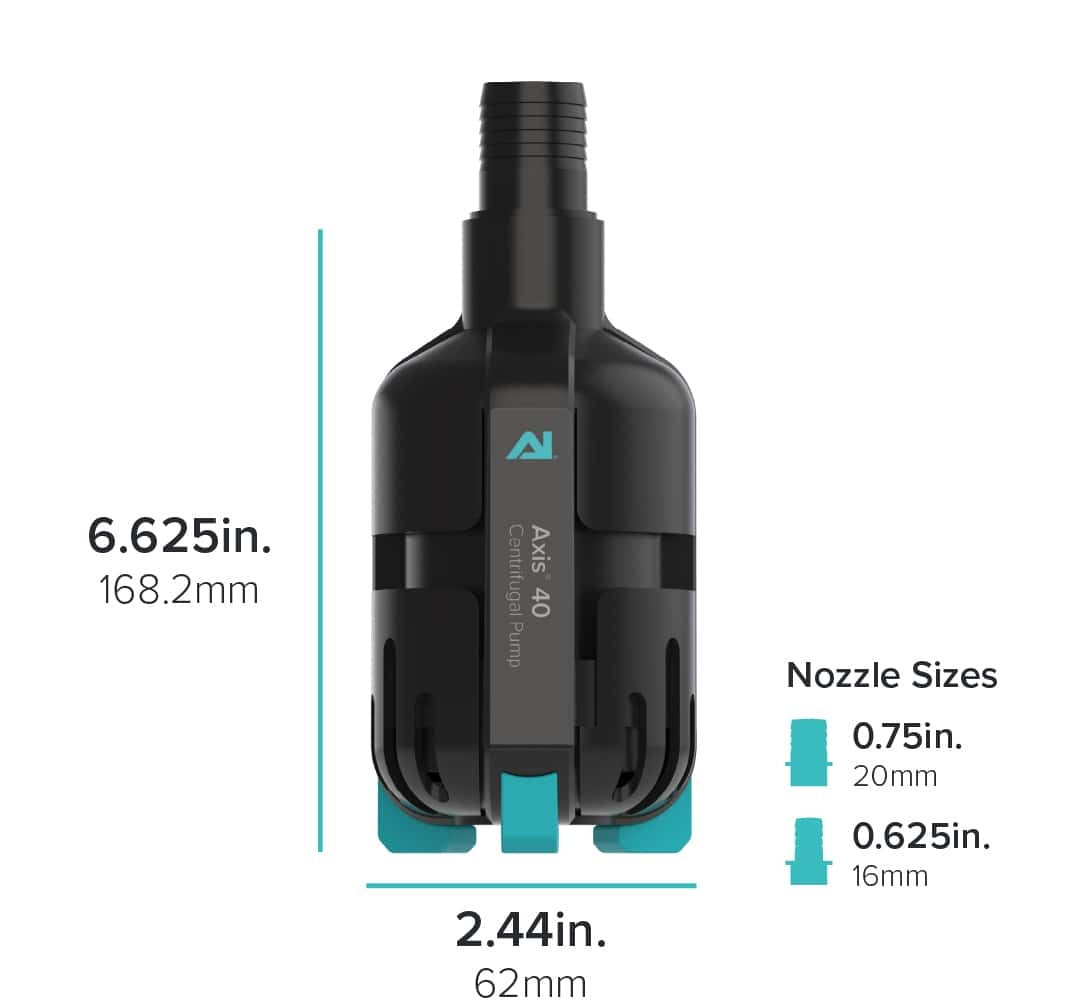

Axis® 40

Dimensions

Width 2.44 in. (62 mm)Height 6.625 in. (168.2 mm)

Specifications

Max Head‰ˆ9 ft. (‰ˆ2.8 m)Flow Rate‰ˆ400 gph (‰ˆ1500 lph)

Recommended Tank Size Up to ‰ˆ40 gallons

Power Consumption Variable, 20W max

Input 100“240VAC, 50-60Hz, 1A

What™s in the BoxAI Axis„¢ 40 Pump with Integrated DriverPower Adapter with Universal Plug

Adapter Set, Quick Start Guide

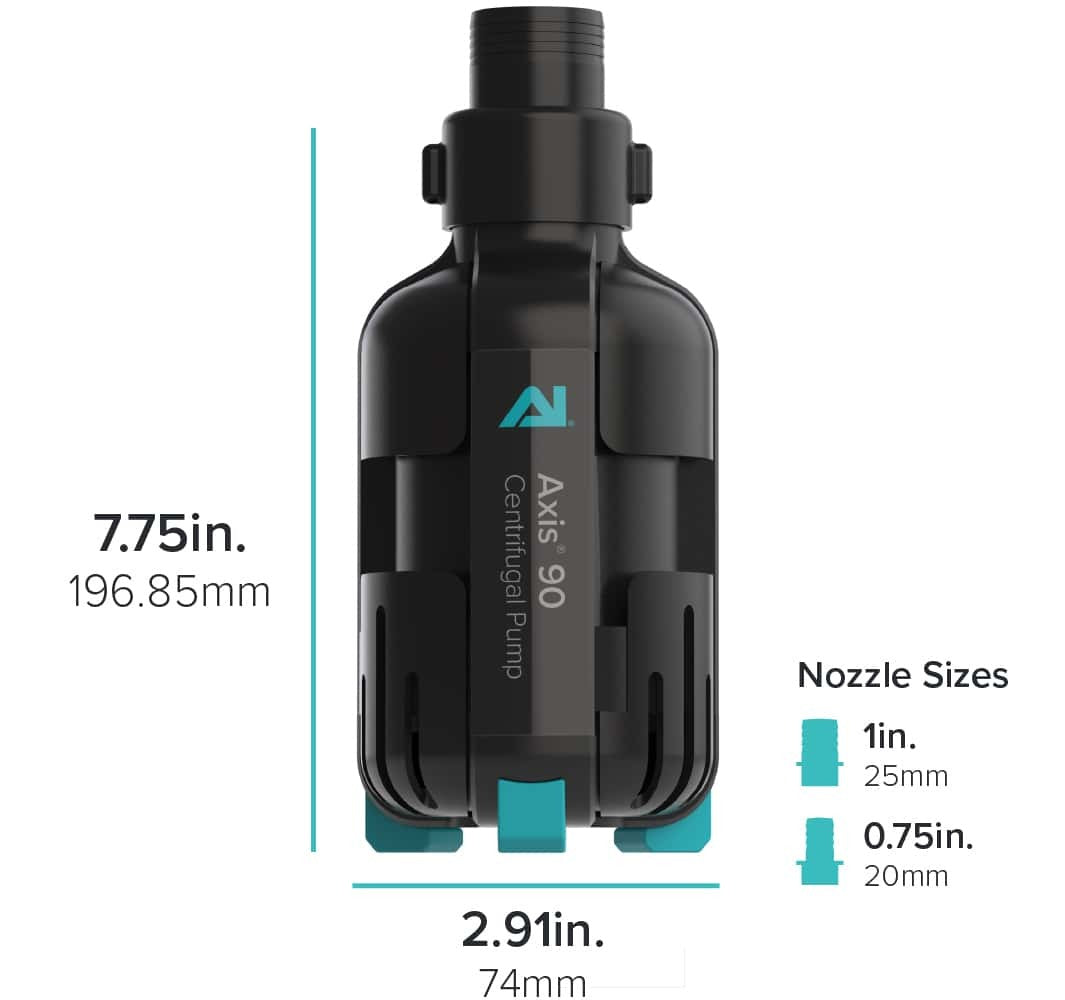

Axis® 90

Dimensions

Width 2.91 in. (74 mm) Height 7.75 in. (196.85 mm)

Specifications

Max Head‰ˆ10 ft. (‰ˆ3 m)Flow Rate‰ˆ925 gph (‰ˆ3500 lph)

Recommended Tank Size Up to ‰ˆ90 gallons

Power Consumption Variable, 40W max

Input 100“240VAC, 50-60Hz, 1A

What™s in the BoxAI Axis„¢ 90 Pump with Integrated DriverPower Adapter with Universal Plug

Adapter Set, Quick Start Guide
